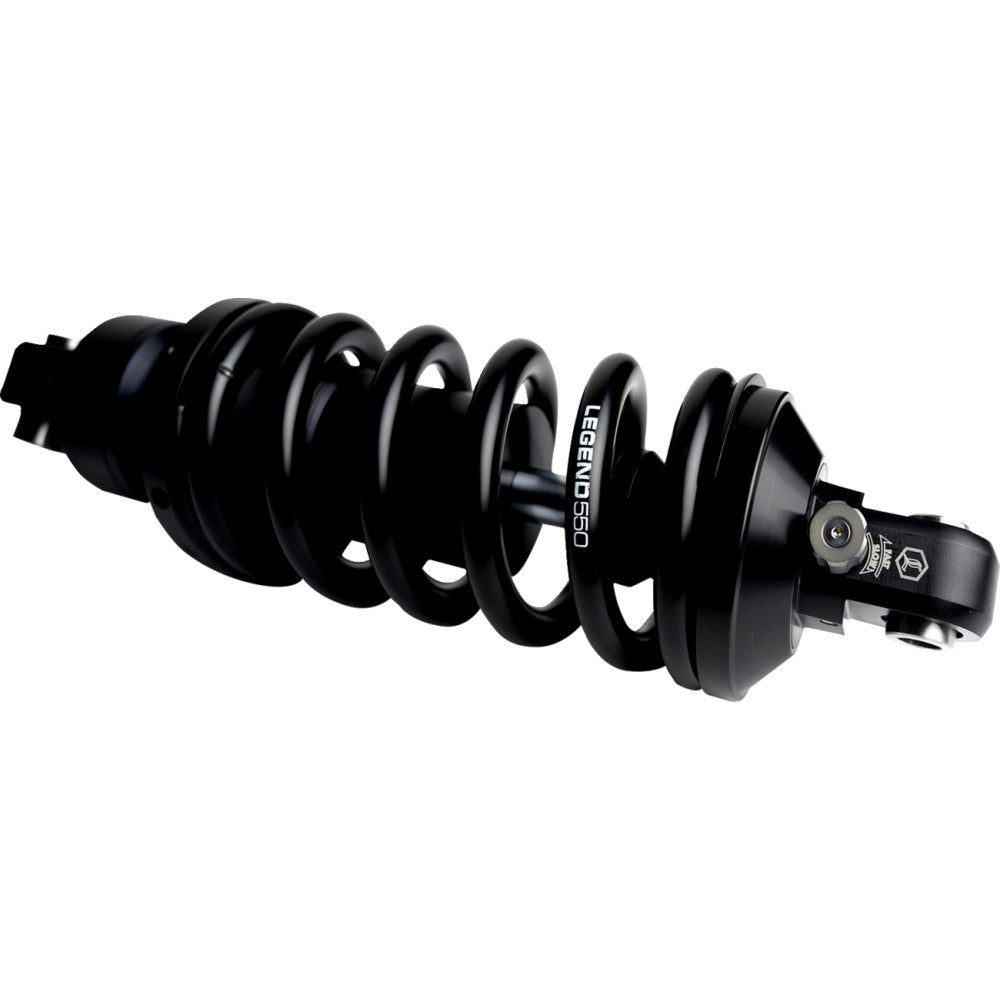

Legend Suspension REVO-A Shock - 13.5IN - Heavy Duty - Key Features
Key Features
All new Revo-A coil design for the M-Eight SoftailAvailable in 12.5", 13", and 13.5", standard or heavy-duty applicationsRevo-A coil spring provides superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort Provides optimum rebound performance that can be fine-tuned for any given rider weight, personal ride preference, or personal riding styleAdjustable preload for rider set up, also allows for minimal pre-load adjustment when changing between rider's weights and loadsSeven external knob adjustments allow fine-tuning of rebound utilizing needle valve technology to adapt to your riding styleLow friction sleeve bearings both top and bottom for ease of installation, this also allows the shock to float in its mount and avoid shock bindHard anodized, machined billet aluminum 46 mm mono tube utilizes a lightweight high flow piston design for improved fluid flow resulting in unmatched handling and bike controlHard chromed shaft is 14% larger for increased strengthHigh quality chrome-silicon spring for consistent spring rate for the life of the motorcycleInternal floating nitrogen piston ensures consistent damping performanceDeflective disc valving self-adjusts to frequency and ensures controlled performanceLegend's durable and low friction sealing system and sliding bearings provide improved performance and feelAvailable in Black Type III hard coat anodizeEasy installation and adjustment replacing the stock shock and mounts with original OEM hardwareSold as Mono Shock (1 shock only)Preload wrench includedDesigned for optimum performance with the Legend Axeo front suspensionLifetime WarrantyMade by hand in Sturgis, SD, USAP65 WARNING: Cancer and Reproductive Harm.Specifications
| Product Name |
Shock Absorber |
| Type |
Coilover Monotube |
| Model |
Revo-A |
| Duty |
Heavy Duty |
| Color/Finish |
Black / Anodized |
| Material |
Billet Aluminum |
| Extended Length |
13.50" |
| Reservoir Location |
Internal |
| Adjustment Type |
Adjustable Rebound Damping |
| Mounting Position |
Rear |
| Units |
Each |
| Riding Style |
Street |
Fitments
- 2022-2023 Harley Davidson Softail Low Rider ST FXLRST
- 2020-2023 Harley Davidson Softail Standard FXST
- 2020-2023 Harley Davidson Softail Low Rider S FXLRS
- 2018-2023 Harley Davidson Softail Fat Bob 114 FXFBS
- 2018-2023 Harley Davidson Softail Fat Boy 114 FLFBS
- 2018-2022 Harley Davidson Softail Heritage Classic 114 FLHCS
- 2018-2021 Harley Davidson Softail Heritage Classic FLHC
- 2018-2021 Harley Davidson Softail Slim FLSL
- 2018-2021 Harley Davidson Softail Sport Glide FLSB
- 2018-2020 Harley Davidson Softail Breakout 114 FXBRS
- 2018-2020 Harley Davidson Softail Deluxe FLDE
- 2018-2020 Harley Davidson Softail Low Rider FXLR
- 2018-2020 Harley Davidson Softail Street Bob FXBB
- 2018-2019 Harley Davidson Softail Breakout FXBR
- 2018-2019 Harley Davidson Softail Fat Bob FXFB
- 2018-2019 Harley Davidson Softail Fat Boy FLFB
Additional Notes
13" is standard length for FLHC/FXFB/FXLRS/FXLRST.
- Refined split-cushion design separates the seating surface...
- Seat features a combination of progressive density foam...
- Passenger pillion area has received special attention...
- Seat has a perforated, ventilated leather cover...
- Made in the U.S.A.
- Comes with backrest options or heated or if you want to you can even have both!
