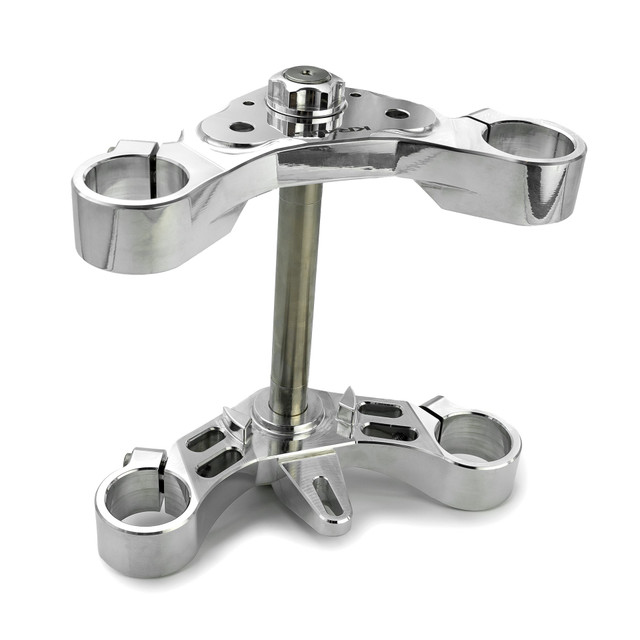

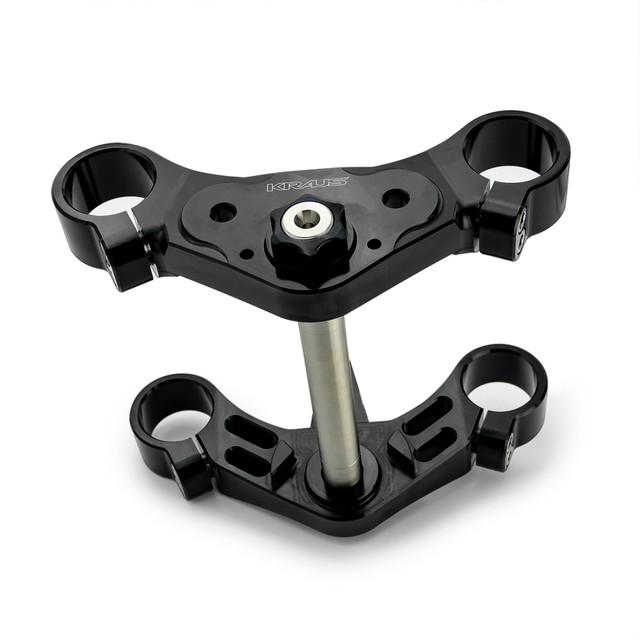

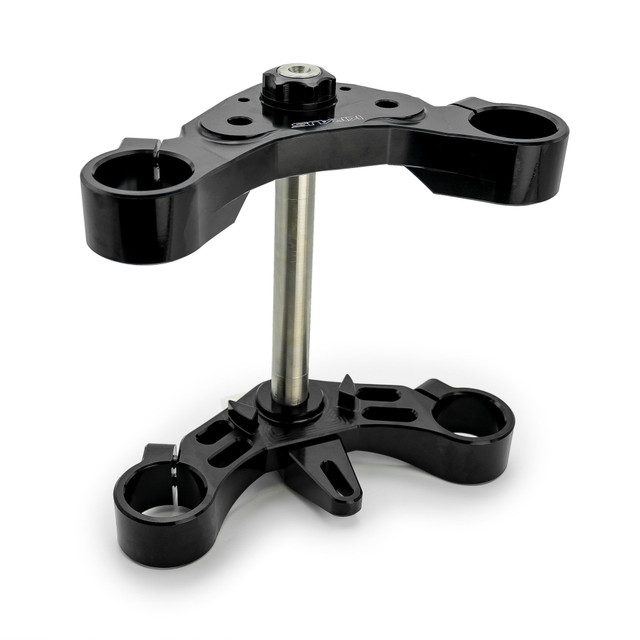

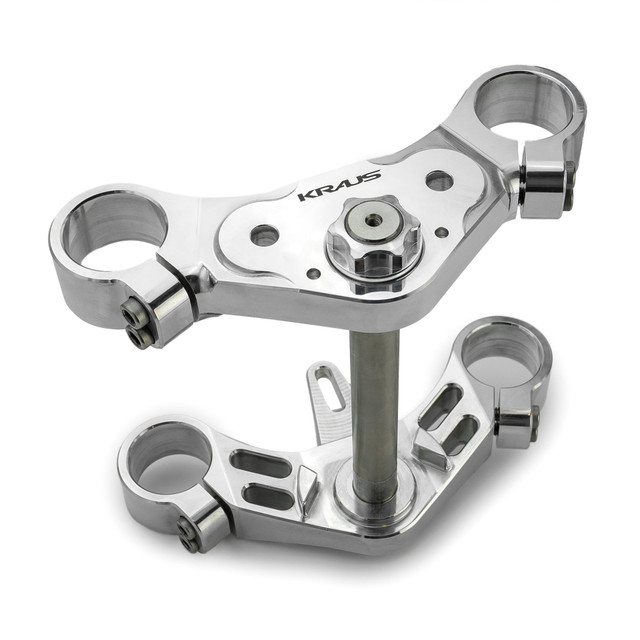

Kraus Harley Dyna 49MM Sport Performance Triple Tree Set
KRAUS 49mm Triple Trees are the foundation of a strong, properly engineered front end.
KRAUS 49mm Triple Trees are engineered and designed to improve the handling and behavior of your Harley Dyna. We have applied all of the knowledge that we've gained from our Dynamoto inverted front ends to the design and geometry of these trees, offering the absolute best setup using stock 49mm forks. The 49mm trees have 0 degrees of rake and a proprietary offset that correct many of the bad handling characteristics of the late model Dynas. The larger surface area of the fork clamps and the engineered cross section offer more rigidity and strength over stock. The use of a bearing tensioning nut offers positive and secure bearing adjustment. These improvements directly affect the behavior of the front end. Making the bike feel lighter, more agile and more stable at both high and low speeds. Machined in the USA from solid billet aluminum to world class standards.
KRAUS 49mm Triple Trees come complete with a nickel coated high strength alloy steel stem. The modular lower headlight mount is sold separately. These trees come complete and ready to install on your Harley-Davidson™ Dyna or custom bike.
KRAUS Triple Trees use OEM H-D stock size neck bearings. (bearings not included)
- Stock 2006-17 Dyna Street Bob, Dyna Lowrider, Dyna Super Glide, Dyna FXD
NOTE: The GPR V5 stabilizer IS NOT compatible with the Kraus SP 49mm Sport/Dynamoto Triple Trees when running Kraus Isolated Risers. ONLY the V4 will fit. THE V5 has a wider body and will make contact with riser legs.
