Barnstorm Indian Challenger Dash Kit (without handlebars)

Sku: BRN-Raw -Dash

Brand: Barnstorm

Dash Plastic Color:

Barnstorm Cycles Indian Challenger dash kit WITHOUT handlebars.


As of 9/1/23 Barnstorm is expecting to ship in 8-10 weeks

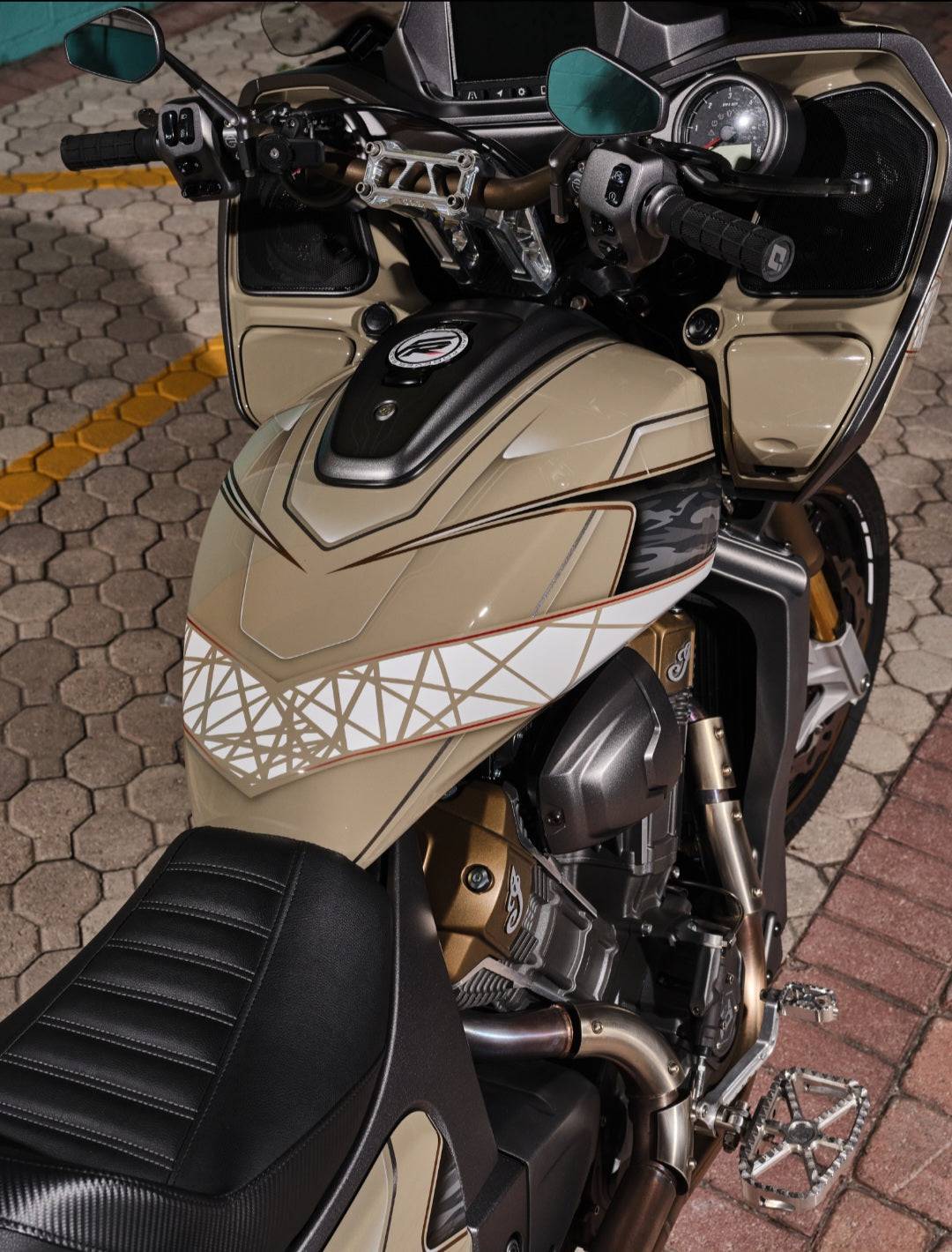

The Barnstorm Dash Kit is engineered and built with the performance rider in mind! It relocates the factory ride command touch screen, as well as the speedometer and tachometer gauges.

The RECENTLY UPDATED lower dash pod now features pockets in it for clearance to run any riser you would like to run. Previous versions had limited clearance for thicker or square style risers.

This configuration allows for the use of "T-bar" style handlebars on Indian Challengers. The relocated instrumentation not only improves the rider experience, but it also completely redefines the overall look and feel of the motorcycle.


With 200+ kits out there now, it is confirmed that the Barnstorm dash kit is a DIY friendly modification, that is 90% bolt on. However, it does require a few basic skills and basic tools. You'll need to be able to follow specific installation steps, as well as disassemble and reassemble critical components. Installation also requires cutting and extending 11 separate wires. Allow 4-7 hours of installation time for the average DIY'er. If you don't feel confident that you will be able to correctly install this kit, please contact us and we can offer advice or bring us your bike and we can assist with installation.  (u must pay labor)


 The Barnstorm dash kit includes:


-Upper Dash Shroud which houses the Ride Command touchscreen. Available in raw white or flat black.

 -Lower Dash Gauge Pod which relocates the Speedometer and Tachometer. Available in raw white, flat black or gloss black.

Ride command relocation mounting bracket. This part is not visible when installed but comes flat black.

CNC machined 6061-T6 aluminum pullback plate bracket in anodized black.

Color matched wire and shrink tubing necessary for extending the speedometer and tachometer harnesses.

Zip ties, split loom, p-clamps, and required hardware for securing your extended harnesses and slightly rerouted front brake line, clutch cable, and handlebar wiring.


 Steps For Ordering Your Kit:




NOTE- Additional shipping charges may apply once item is ready to ship. If so, a separate invoice will be sent at the time for the additional charge.


Dash Kit Installation Notes:

Every Dash Kit comes with all the parts you will need for the installation of the components you have ordered. It also comes with 24" of each color wire needed to extend your Tachometer and Speedometer harness so that they can reach their new mounting location. Some of the hardware you take off of your stock dash will be reused. We also include the zip ties, split loom, p-clamps, and hardware needed for securing your extended harnesses, front brake line, clutch cable, and handlebar wiring. If you choose to use the 1-piece T-Bar, or mx bar with a riser that is NOT taller than 10", you should not need to extend your handlebar wiring, your clutch cable or front brake line. The front brake line retention points will have the be reworked a bit, however. Also, while you can use butt style crimp connectors to extend your gauge wiring, we HIGHLY recommend that you solder the wires for the best results.

Detailed installation video and instructions on our YouTube channel here:


-You DO NOT need to cut the handlebar wiring to remove it from the factory bars. The wiring simply needs to be unplugged from the left and right handlebar switch packs, as well as the throttle twist grip. Then it can be pulled down and out of the bars. Install into your new bars in the reverse fashion.

- The Ride Command and gauge relocation dash panels are 3D printed in a material that is very similar to ABS plastic in terms of strength, toughness, and durability. When being painted, they should not be baked at a temperature above 125 degrees Fahrenheit.

- In the unlikely event we do not receive enough orders to fulfill our manufacturing minimums, all Pre-Orders will be FULLY refunded.

Barnstorm and Forever Rad are not responsible for any damage, injury or other unforeseen outcomes as a result of improper or inexperienced installation procedures, negligence or failure to follow recommendations.
