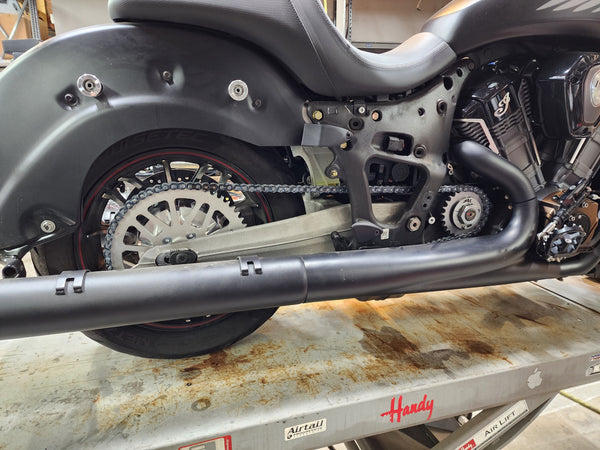

Barnstorm Chief and Chieftain Chain Drive Conversion

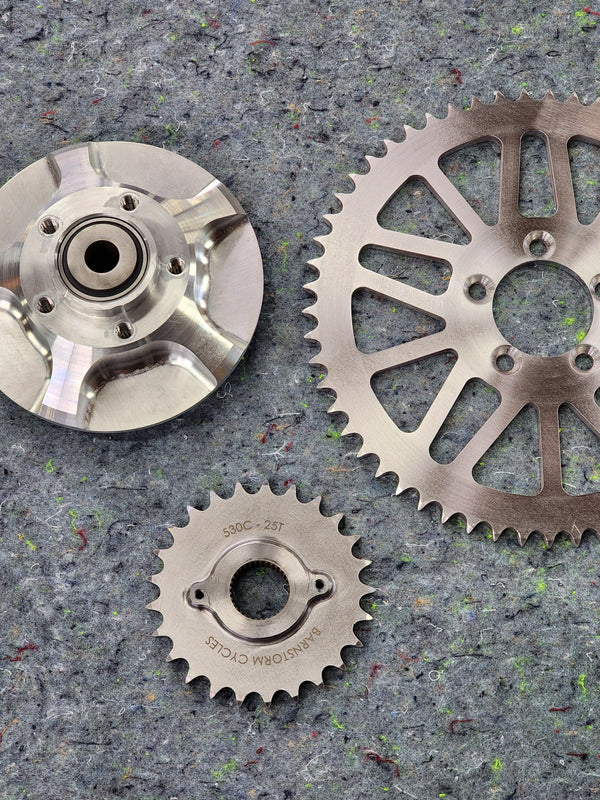

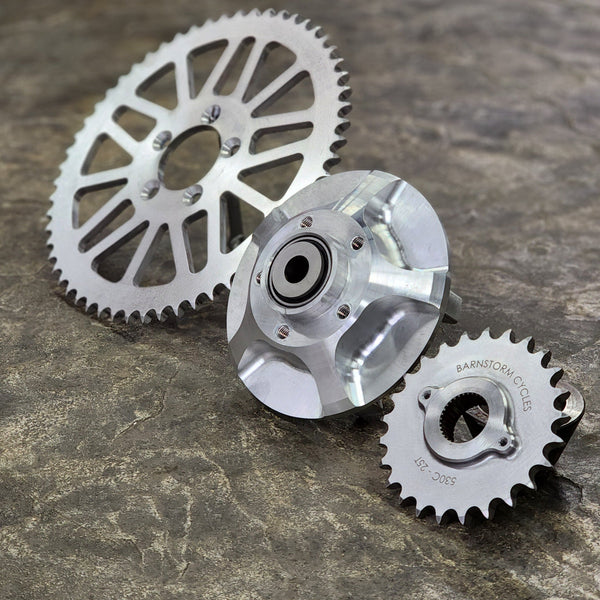

The standard kit comes with:
-1 Front sprocket
-1 rear sprocket
-1 Cush-drive adapter with dual-row precision sealed ball-bearings installed
-All necessary hardware.
The sprockets and Cush-adapter components in this kit are precision machined specifically for us and are available in A few finishes.
You can also add a 530 heavy duty sealed Chain with rivet link to your kit. Adding the chain makes your kit basically plug-and-play.
Or you can source and supply your own chain.
SPROCKETS CURRENTLY OFFERED ARE AS FOLLOWS:
Front: 25Tooth machined from 4130 Chromoly, heat treated and finished in electroless nickel.
Rear: Our stylish 57 Tooth rear sprocket is machined from High strength 7075-T6 aluminum and is available in Natural as machined, Black Anodize or Polished. If installed on Sport Chiefs, it will match the stock rear wheel. On all other models the design is still complementary and nicer than the standard hole patter common in aftermarket sprockets.
This 25:57 tooth provides a final drive ratio that is very similar to stock.
***We plan to additional rear sprocket size options in the future. However, with minimal modifications, many aftermarket rear sprockets can be made to work with our cush-drive adapter. This allows you to tweak your final drive gear ratios on your own. However, you do so at your own risk.

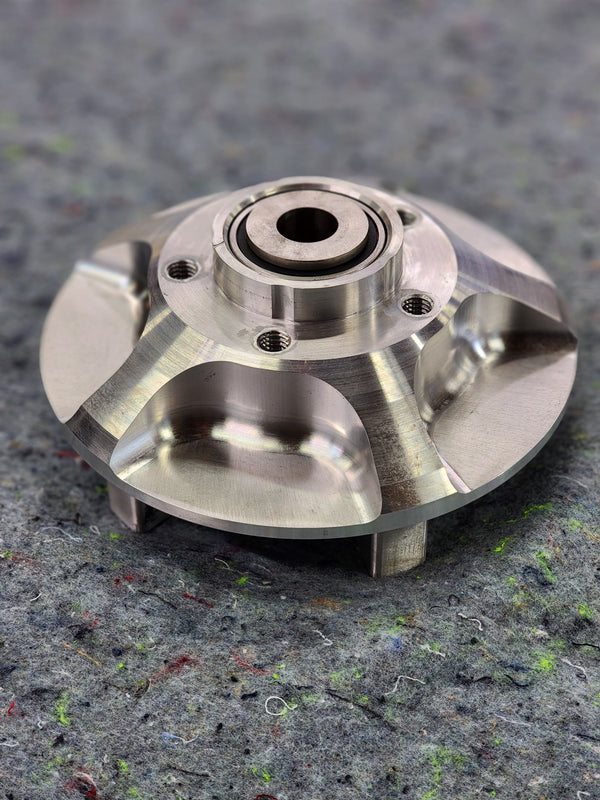

Our cush-drive adapter is machined from High strength 7075 Aluminum as well and will come in the same color you choose for your rear sprocket.
Heavy Duty Sealed 530 Chains offered:
Black and Chrome
Black and Gold
