Baja Designs LP4 Pro headlight ONLY

Sold out
Sale
$437.95
You Save: (%)

Sku: BAJA-290013

Brand: baja designs

Color/Pattern:

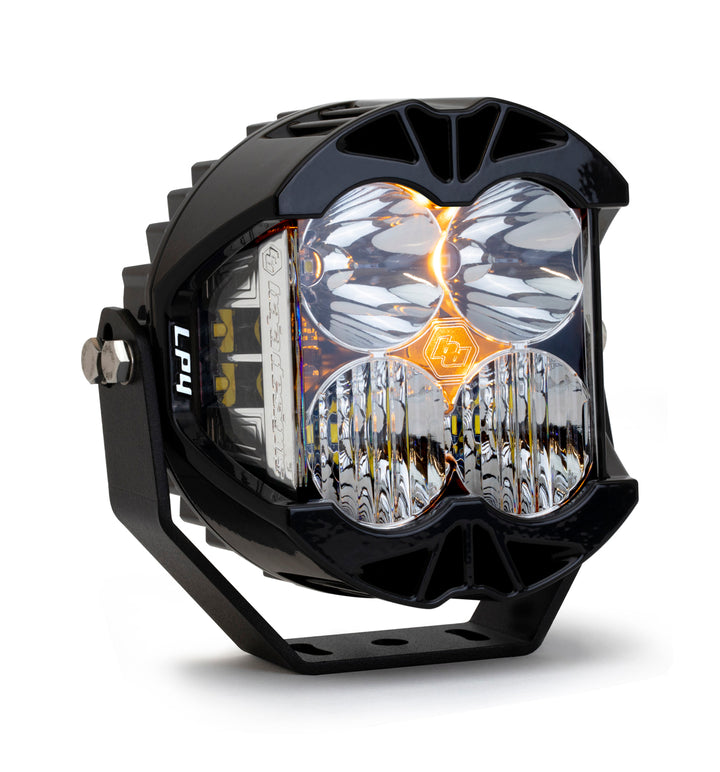

The LP4 is the smallest variant in the LP line up but maintains all of the power and features of its siblings. The LP4  features a total of 8,750 lumens and a 200° spread of useable LED light. This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of Baja Designs patented Integrated Peripheral Technology (IPT).

To keep your light performing at its highest potential, the LP4 integrates Baja Designs proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance.

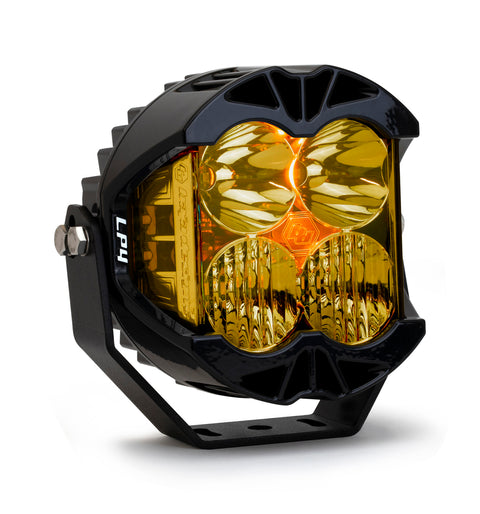

With an amber day-time running light, the LP4 will fulfill all your lighting needs.



SOLD INDIVIDUALLY

Baja Designs Features:

  • Limited Lifetime Warranty Complete Purchase Protection
  • uService® Replaceable Lenses And Optics
  • ClearView® All The Light, Right Where You Need It.
  • MoistureBlock„¢ Waterproof, Rain Proof, Submersible
  • CopperDrive® Only LED Driven At 100%
  • 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

  • Forward Projecting Lumens: 7.050 Utilizing 4 LEDs
  • Forward Projecting Wattage/Amps: 60W / 6.5A
  • IPT Lumens: 1,700 Utilizing 4 LEDs
  • IPT Wattage/Amps: 15W / 1.0A
  • Backlight Wattage/Amps: 4.83W / 0.35A
  • Dimensions: 5.1" Height / 5.1" Width / 3.2" Depth
  • Weight: 2.8lbs
  • Mating Connector: DT06-4S Deutsch
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard coated Polycarbonate
  • Housing: Hard Anodized Cast Aluminum
  • Bezel: Hard Anodized Cast Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

Patterns:

Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)


High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
