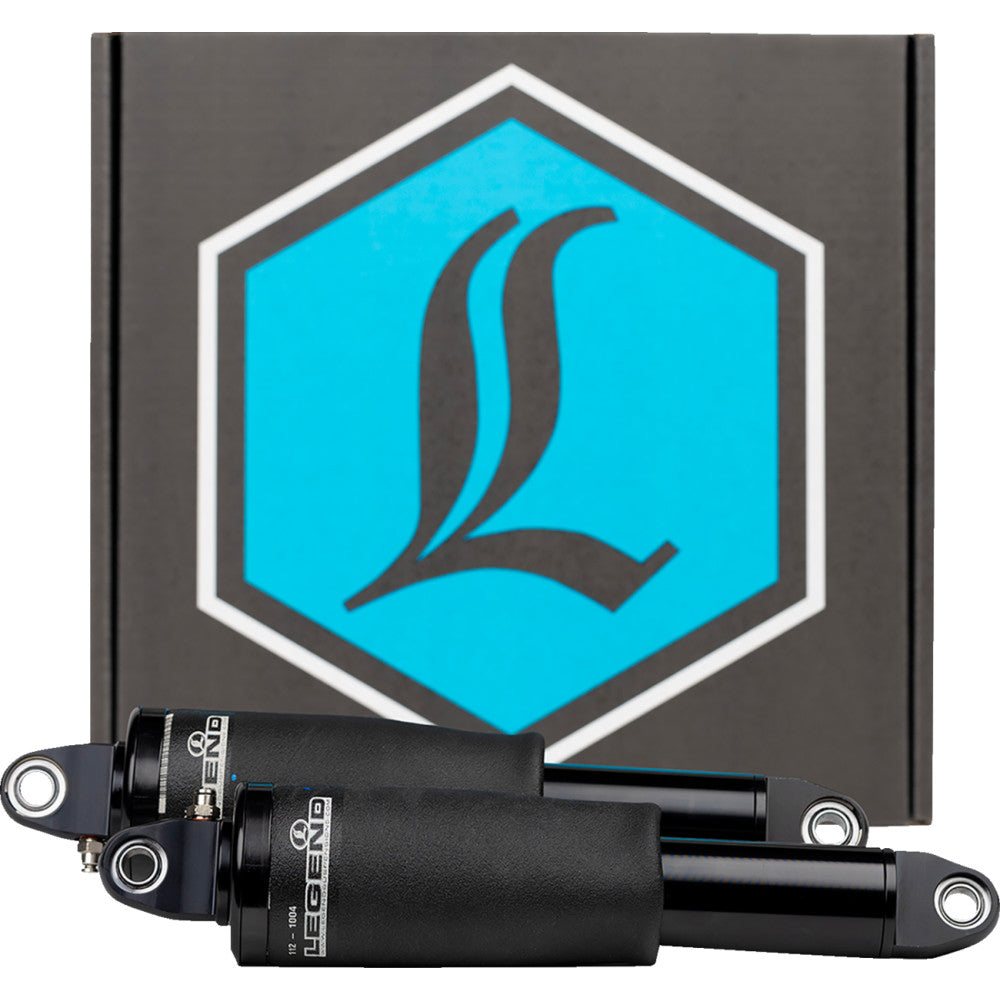

Legend Suspension AIR Sportster Air Suspension - Black - Standard - Key Features
Key Features

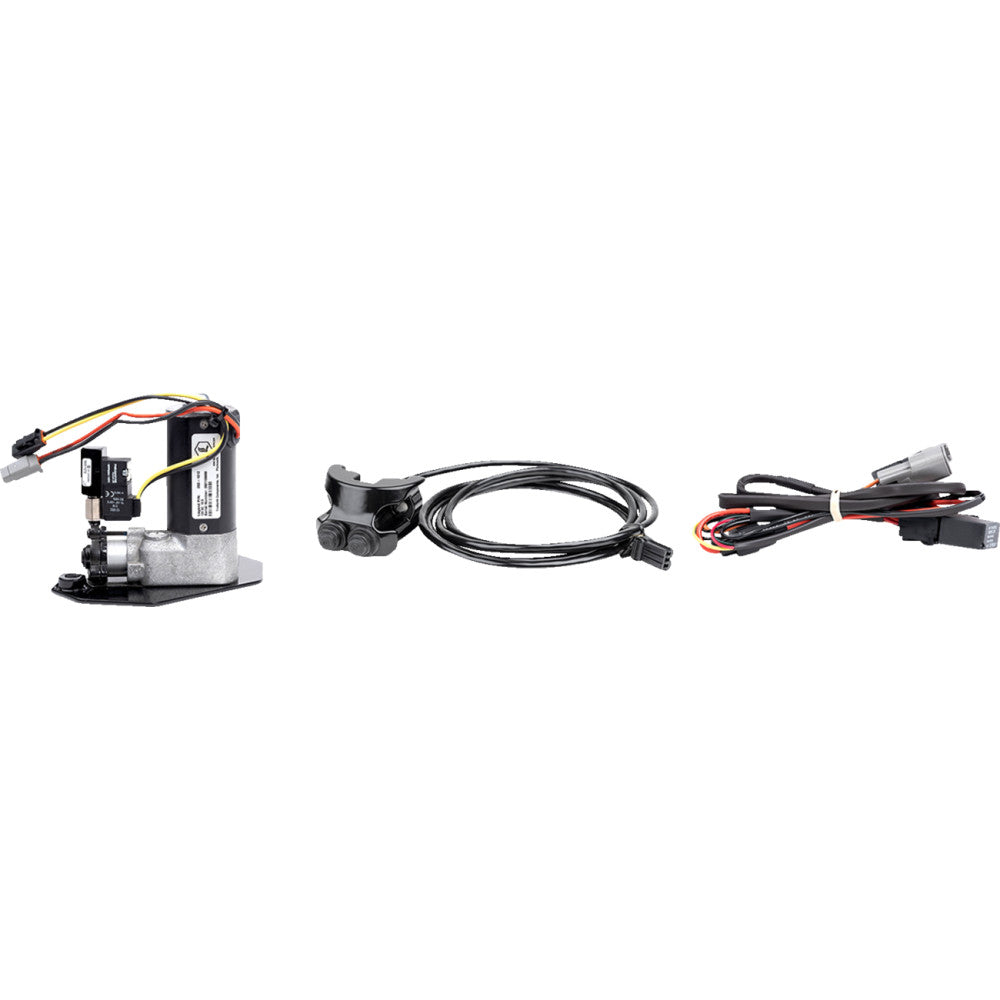

Legend AIR Suspensions systems sets the high mark in ultimate ride qualityExclusive Aramid Fiber air spring technology provides spring rate adjustabilityAir springs maximize wheel travel and adjust to any desired ride heightFitment accommodates 12" and 13" needsEasy installation and alignment, provided by spherical bearings on both top and bottom mounting pointsType III hard-coat black anodized machined aluminum bodiesLow friction sealing system and sliding bearings for improved performance and feelHigh flow piston reacts quickly for improved fluid flow managementDeflective disc valving self-adjusts to frequency and ensures controlled performanceIncludes prewired air compressor with model specific mountingComplete wire harness installs with three easy Deutsch connectionsIncludes OEM-looking black handlebar mounted control for easy "on-the-go" adjustabilityOptional chrome handlebar mounted control sold separately (Part # 0616-0207)Made by hand in Sturgis, South Dakota, USAP65 WARNING: Cancer and Reproductive HarmSpecifications
| Product Name |
Shock Absorber |
| Type |
Air |
| Model |
Air |
| Damping Method |
Deflective Disc |
| Color/Finish |
Black |
| Material |
Aramid Fiber / Hard Anodized Machined Aluminum |
| Extended Length |
13.00" |
| Adjustment Type |
Adjustable Air Spring |
| Mounting Position |
Rear |
| Units |
Kit |
| Riding Style |
Street |
Fitments
- 2012-2013 Harley Davidson Seventy-Two XLV
- 2011-2013 Harley Davidson 883 SuperLow XLL
- 2010-2013 Harley Davidson Forty-Eight XLX
- 2009-2013 Harley Davidson Iron 883 XLN
- 2007-2013 Harley Davidson 1200 Custom EFI XLC
- 2007-2012 Harley Davidson 1200 Nightster XLN
- 2007-2010 Harley Davidson 883 Low EFI XLL
- 2007-2009 Harley Davidson 883 Custom EFI XLC
- 2007-2008 Harley Davidson 883 EFI XL
- 2007-2008 Harley Davidson 1200 Roadster EFI XLR
- 2007 Harley Davidson Sportster 1200 XL 50
- 2007 Harley Davidson 883 Roadster EFI XLR
- 2006-2011 Harley Davidson 1200 Low EFI XLL
- 2006 Harley Davidson 1200 Low XLL
- 2005-2006 Harley Davidson 883 Low XLL
- 2005-2006 Harley Davidson 883 Roadster XLR
- 2004-2006 Harley Davidson 883 XL
- 2004-2006 Harley Davidson 1200 Roadster XLR
- 2004-2006 Harley Davidson 1200 Custom XLC
- 2004-2006 Harley Davidson 883 Custom XLC
Additional Notes
Does not fit Sportster Super Low.
